Madison Whiskey
Item #10752
Quality specifications, inspection guidance, and production notes for .
- Quality tolerances
- 8
- Production references
- 3
- Gallery images
- 3
Loading reference drawing preview…
Quality documentation Copy link to Quality documentation
Quality tolerances
| Low | Spec | High | |
|---|---|---|---|
| Height | 3 1/4" | 3 3/8" | 3 1/2" |
| Width | 3 5/8" | 3 3/4" | 3 7/8" |
| Depth | 3 5/8" | 3 3/4" | 3 7/8" |
| Opening | 2 5/8" | 2 3/4" | 2 7/8" |
| Foot/Base | 2" | 2 1/8" | 2 1/4" |
| Capacity | 8 oz | ||
| Weight | 7 oz | 10 oz | 13 oz |
| Rim Thicnkess | 1.5 mm | 2 mm | 3 mm |
Production notes Copy link to Production notes

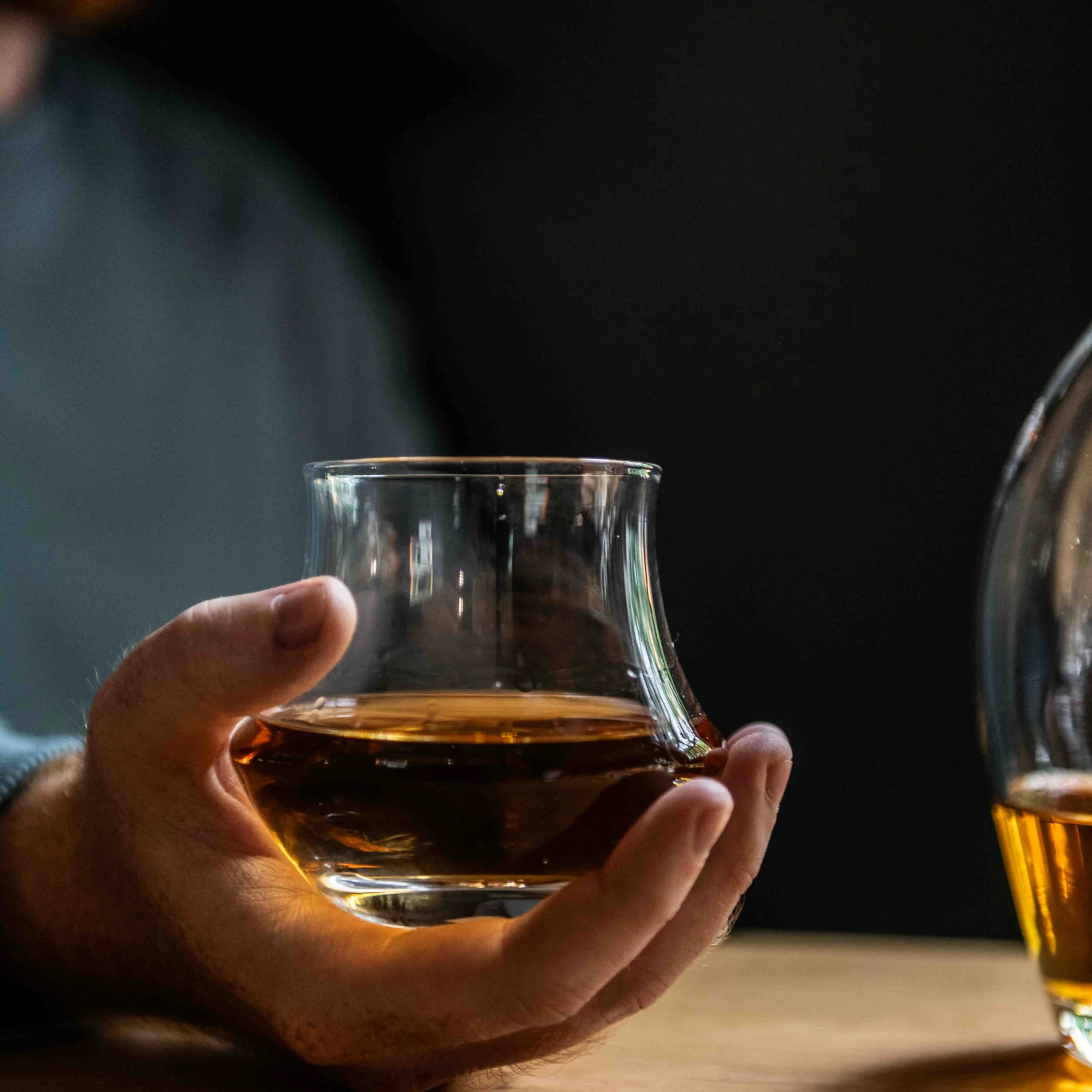

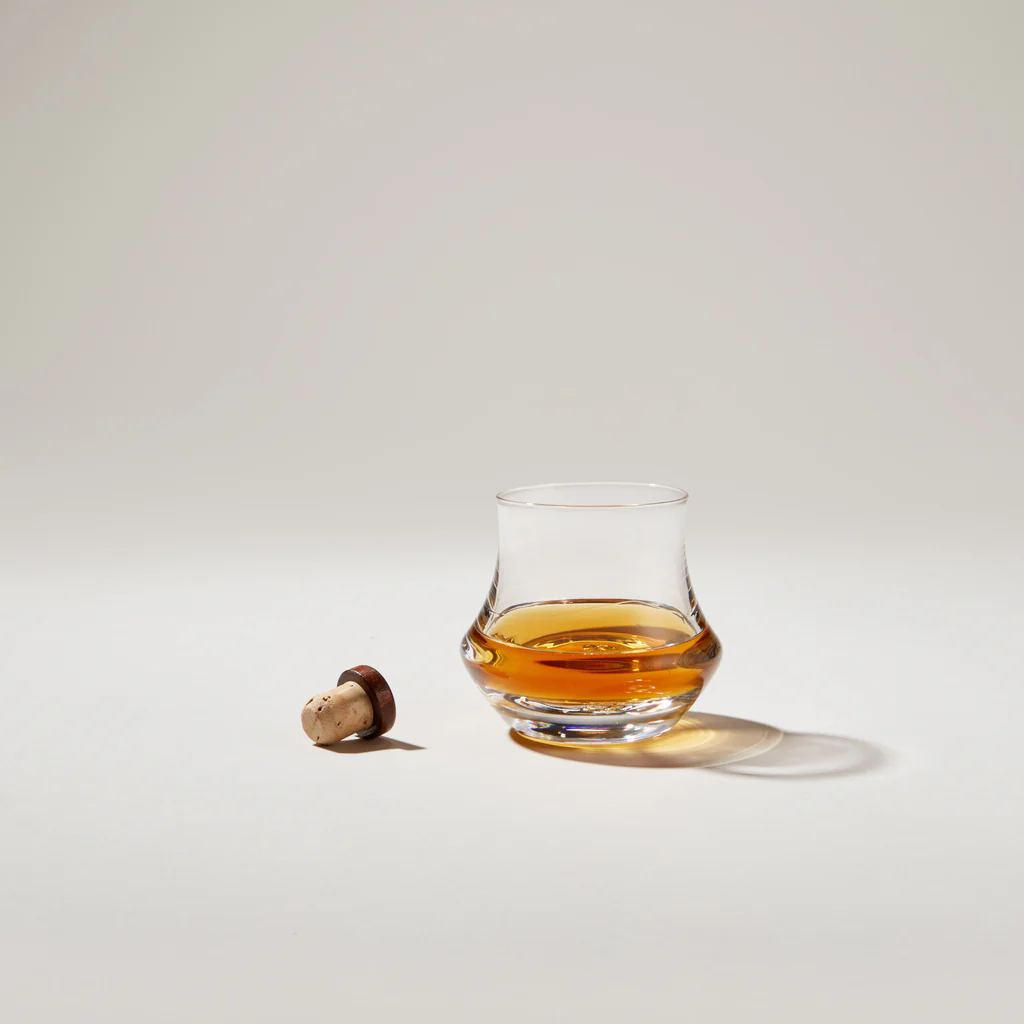

1st quality photos
Reference details
| Reference | Value |
|---|---|
| Mould/Form | |
| Pontil Stamp | |
| PLC number |
