Essex Tulip - L
Item #4519
Quality specifications, inspection guidance, and production notes for .
- Quality tolerances
- 9
- Production references
- 3
- Gallery images
- 2
Loading reference drawing preview…
Quality documentation Copy link to Quality documentation
Quality tolerances
| Low | Spec | High | |
|---|---|---|---|
| Height | 6 7/8" | 7" | 7 1/8" |
| Width | 3 3/8" | 3 1/2" | 3 5/8" |
| Depth | 3 3/8" | 3 1/2" | 3 5/8" |
| Opening | 3 3/8" | 3 1/2" | 3 5/8" |
| Bowl Height | 4 7/8" | 5" | 5 1/8" |
| Foot/Base | 3 3/8" | 3 1/2" | 3 5/8" |
| Capacity | 16 oz | ||
| Weight | 11 oz | 14 oz | 1lbs 1 oz |
| Rim Thickness | 1/16" | 1/8" | 3/16" |
Production notes Copy link to Production notes

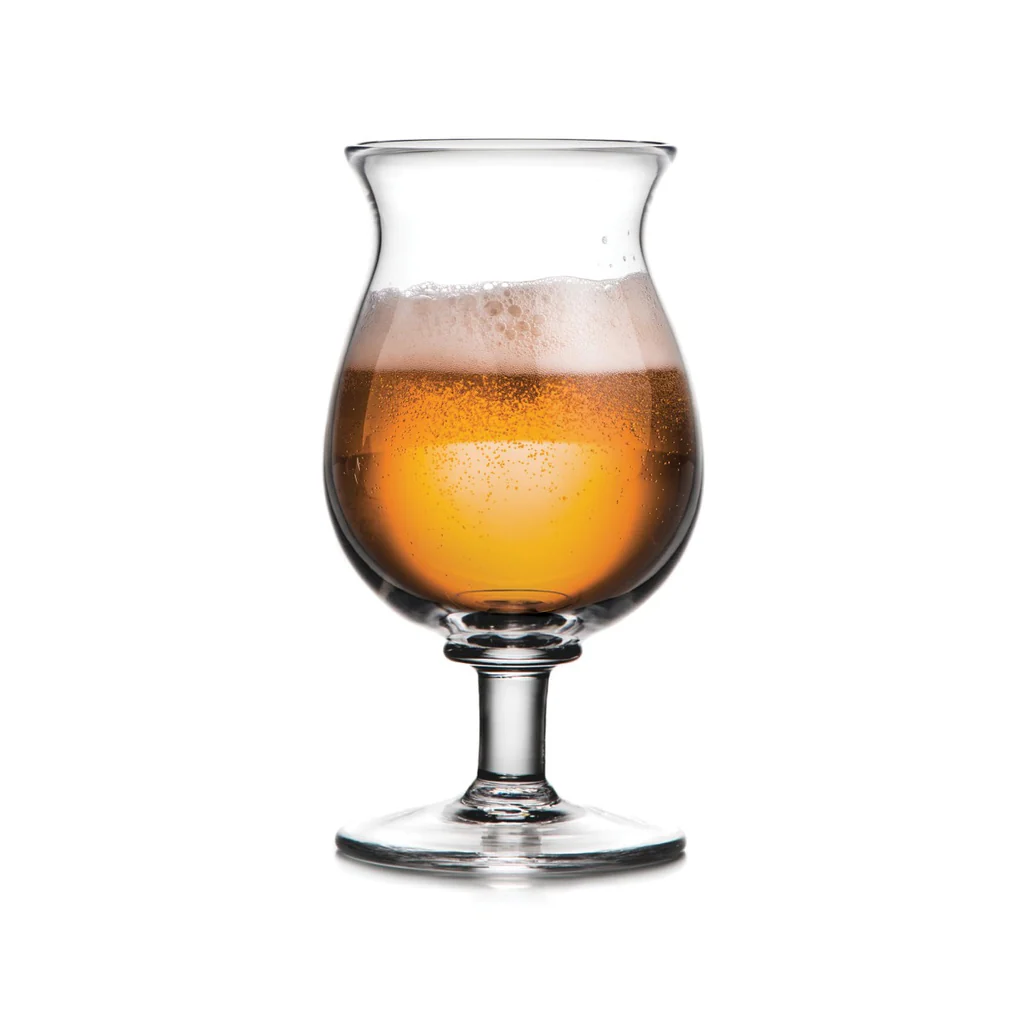

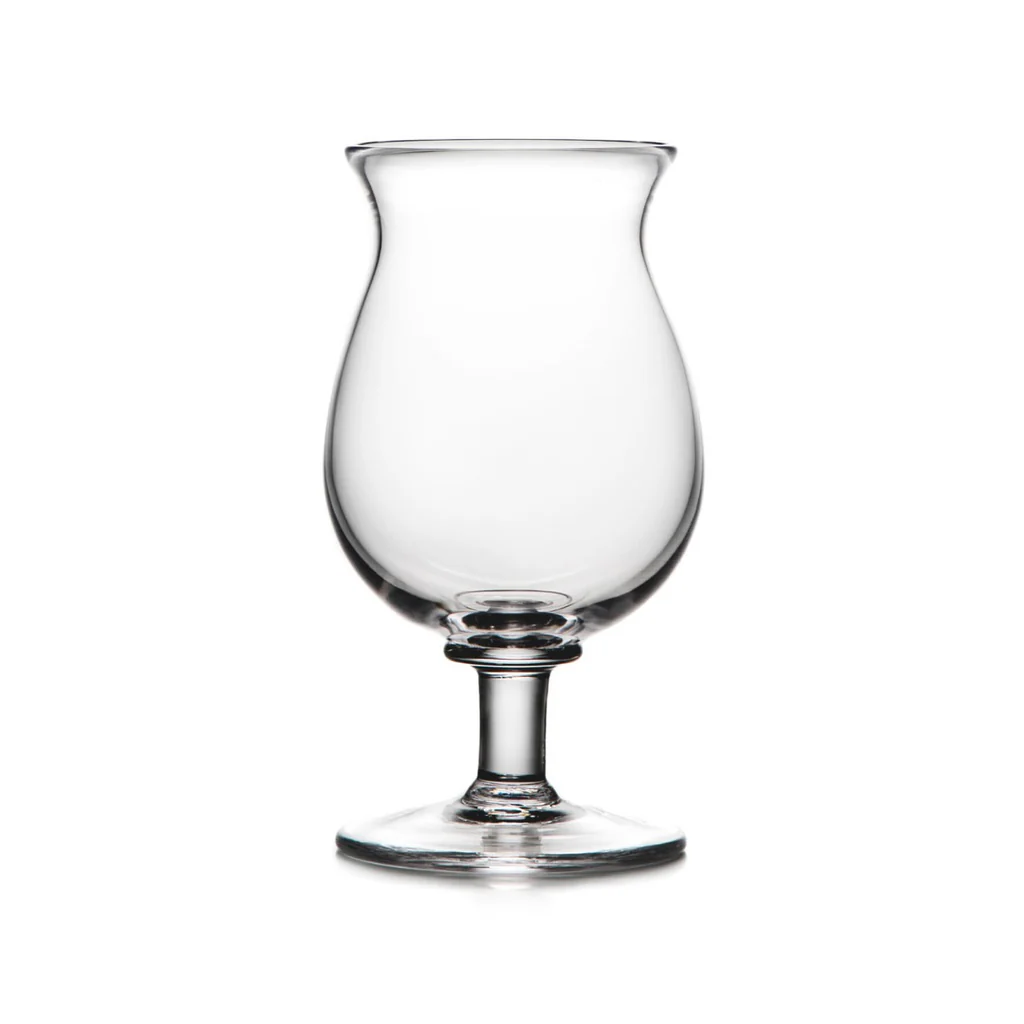

1st quality photos
Reference details
| Reference | Value |
|---|---|
| Mould/Form | |
| Pontil Stamp | |
| PLC number |
